Ip65 Solar LED Flood Lights / Solar Security Light / Solar Powered
Flood Lights
Quality Control
We have very strict Quality Control System, from checking and
evaluation of incoming materials to the delivery of products, each item will be checked and tested for
several times.
For every piece of Solar LED Flood Lights, they will be aged for at
least 72 hours before delivery to make sure of their long term and stable performances within lifetime.
SPECIFICATIONS FOR SOLAR SECURITY FLOOD LIGHTS
| Model Number | JL-YYL102 | JL-YLY-103 | JL-YYL104 | JL-YYL-105 | JL-YYL106 | JL-YYL107 |
| Solar panel | 6V 8W | 6V 12W | 6V 16W | 6V 20W | 6V 35W | 10V 45W |
| Polycrystalline Panel (GradeA) |
| Storage Battery | 3.2V 4500 mAh | 3.7V 5000 mAh | 3.7V 10000 mAh | 3.7V 20000 mAh | 3.7V 30000 mAh | 3.7V 39000MAH |
| 32650 Type LiFePO4 batteries |
| light source | 40 PCS LED | 71PCS LED | 100 PCS LED | 156 PCS LED | 256 PCS LED | 400 PCS LED |
| Light power | 10W | 25W | 40W | 60W | 100W | 200W |
| Charging time | 4-6H |
| Working time | 12-15H |
| Color Temperature | Cool-White: (6000-6500K) Warm-white: (3000K) |
| Main Material | Die-casting aluminum+Toughened glass |
| Working mode | Light induction & Intelligent remote control |
| IP Grade | IP67 |
| CRI ( Ra>) | 85 |
LampLuminous
Efficiency(lm/W) | 130 lm/ W |
| Working Temperature | -15℃~60℃ |
| Certificate | CE& ROHS |
| Lamp Size | 16.5*4.5*13 | 20.5*5*16 | 12.8*16 | 15.8*20.5 | 26.2*32.6 | 37*9.5*30 |
| Panel Size | 17.5*26.5 | 17.5*34 | 33.9*28.9 | 34.9*34.9 | 36*58 | 36.5*58.5 |
| Shell Color | Black or White |
| Extension Cable | 5m |
| QTY/CTN | 16PCS | 10PCS | 8 PCS | 5 PCS | 4 PCS | 4 pcs |
| G. W/ CTN | 17.4kgs | 20KGS | 27kgs | 21kgs | 26.5kgs | 28kgs |
| Measure/ CTN | 38*39.5*29 | 58*36.5*26 | 49*38*43.5 | 38*38*38 | 59.5*32*38 | 61*32.5*39 |
Item name: solar led flood lights outdoor
Rated voltage: DC12V
Wattage: 200w
LED chip: CREE chip SMD3030
LED quantity: 200pcs
Battery: LiFePO4 48AH
Solar panel: 40w 480*670*30mm
Waterproof: IP65
Working hours: 12 hours per day
Back up: 7 days
Lumen: 22000lm
Lux (5 meter height): 91lux
RA: 0.8
Power indicator: with indicator
Lamp body material: alumimium + tempered cover
Cabel length: 5 meters
Warranty: 2 years
Packing: each in a box
Applications: yard, house, building, garden, village way, park,
street, industrial area, gym, sport area, football playground

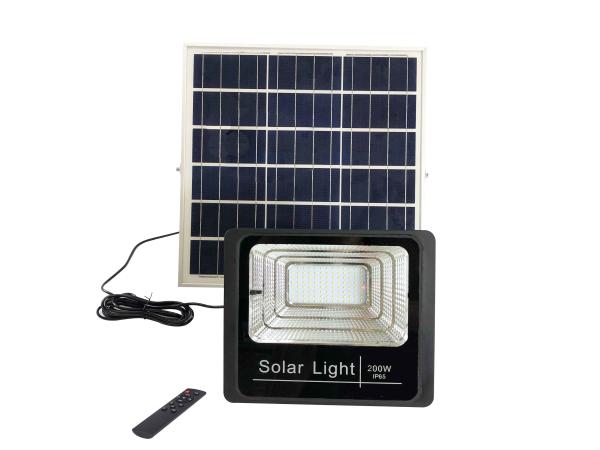

PRODUCT PICTURE:
INSIDE MATERIAL FOR THIS SOLAR LED FLOODLIGHT:
APPLICATION FOR PARK:
