High Brightness 300mm T8 LED Tube 2FT Glass T8 LED Tube Light
smd2835
Feature:
A. Easy to use .
B. Can be connected one by one
C. Indoor lighting for domestic using , such as bathroom
D. Fast light brighten,no delay and flicker;
E. Energy-saving: saving 80% than the ordinary lamp;
F. Green and health protection,no pollution,more comfortable for
our vision.
Specifications for
High brightness T8 led tube 1 FT Glass t8 led tube smd2835
| 1200mm | 600mm |
| Model No. | PE-1415ND8 | PE-1617ND8 | PE-1818ND8 | PE-1922ND8 | PE-0808ND8 | PE-0909ND8 | PE-1011ND8 |
| Input Voltage(VAC) | AC85V-265V | AC85V-265V | AC85V-265V | AC85V-265V | AC85V-265V | AC85V-265V | AC85V-265V |
| System Level Power(W) | 14 | 16 | 18 | 19 | 8 | 9 | 10 |
| Lumens | 1500 | 1700 | 1850 | 2200 | 850 | 950 | 1100 |
| Efficacy(lm/W) | 107 | 106 | 103 | 116 | 106 | 106 | 110 |
| Color Redering Index | 85 | 85 | 85 | 85 | 85 | 85 | 85 |
| Calculated Life | >30000 | >30000 | >30000 | >30000 | >30000 | >30000 | >30000 |
| Operating Temp(℃) | -20 to 45 | -20 to 45 | -20 to 45 | -20 to 45 | -20 to 45 | -20 to 45 | -20 to 45 |
| SMD 2835 Brand | Hongli SMD2835 |
| SMD 2835 Quantity | 84 | 84 | 96 | 96 | 42 | 48 | 48 |
| Color temperature | 3000K-7000K |
| PF | 0.95/0.55 | 0.95/0.55 | 0.95/0.55 | 0.95/0.55 | 0.95/0.55 | 0.95/0.55 | 0.95/0.55 |
| Size |
1214*Φ26 mm | 1214*Φ26 mm | 1214*Φ26 mm | 1214*Φ26 mm | 604*Φ26 mm | 604*Φ26 mm | 604*Φ26 mm |
| Warranty | 2-3years |
| Cover | Glass/PC | Glass/PC | Glass/PC | Glass/PC | Glass/PC | Glass/PC | Glass/PC
|
ITEM NAME: LED T8 GLASS TUBE
RATED VOLTAGE: 165V-265V
RATED WATTAGE: 6W
COLOR TEMPERATURE: 3000K, 4000K, 5500K, 6500K, 7500K
RA: 0.80
POWER FACTOR: 0.58 or 0.8
TUBE MATERIAL: GLASS TUBE
LUMEN:>600LM
LED CHIP: SMD2835
CHIP QUANTITY: 24PCS
WORKING LIFETIME: 20000HOURS
WARRANTY: 1YEAR
PACKING: EACH IN A FOAM BAG, 30PCS PER CARTON
CERTIFICATION: CE, EMC
APPLICATIONS: FACTORY, SUPERMARKET, HOME, SHOP, WAREHOUSE,
PRODUCTION LINE, WORKSHOP

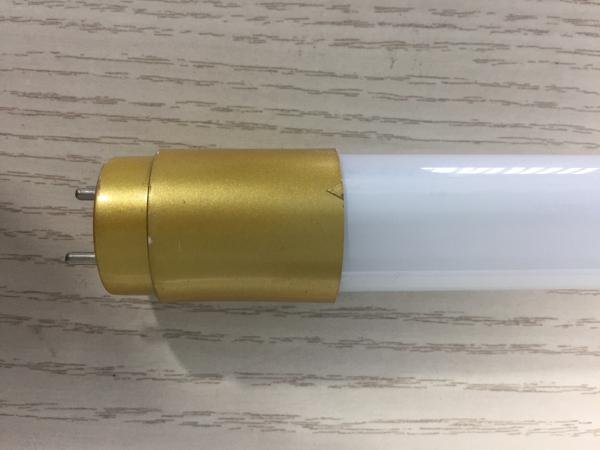

REAL GOODS:
THE GLASS TUBE IN PRODUCTION TEST:
PACKING CARTON:
